The long-neck Venturi gas/liquid two-phase flowmeter
The long-neck Venturi gas/liquid two-phase flowmeter

Product features

Patented technology: original double-differential pressure ratio method holdup measurement technology.

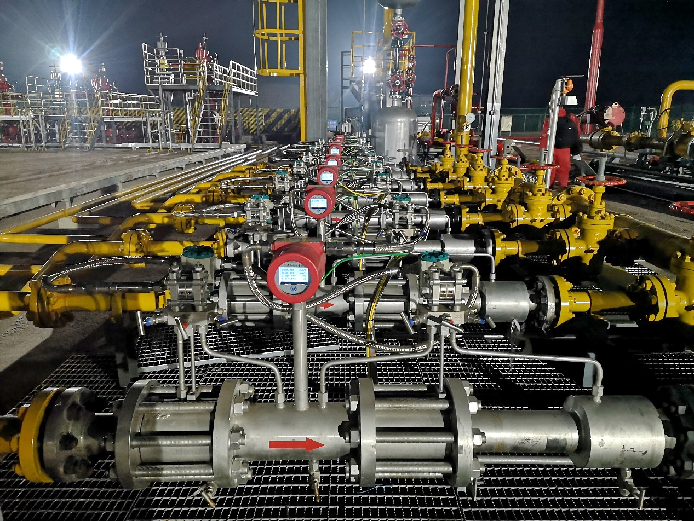

Long-neck venturi gas / liquid two-phase flowmeter

● Unseparated metering: gas wellhead gas/liquid two-phase mixed transmission flow measurement, without separator required.
● No radioactivity: no gamma-ray source, safe and environment friendly.

● Wide application range: applicable to conventional gas fields, shale gas fields, tight sandstone gas fields, coalbed methane fields, etc.









产品参数

Specifications


Model
HHTPF-LV
Gas phase measurement accuracy
±5%
Accuracy of liquid phase measurement±10%
Liquid rate flow range
0~10%
Nominal diameter
DN50, DN80
Design pressure

6.3MPa, 10MPa, 16MPa

Material
304, 316L, Hard alloy, nickel-base alloy,2205














主要用途

Wide application range: applicable to conventional gas fields, shale gas fields, tight sandstone gas fields, coalbed methane fields, etc.
